Serial Communication

UML Diagram

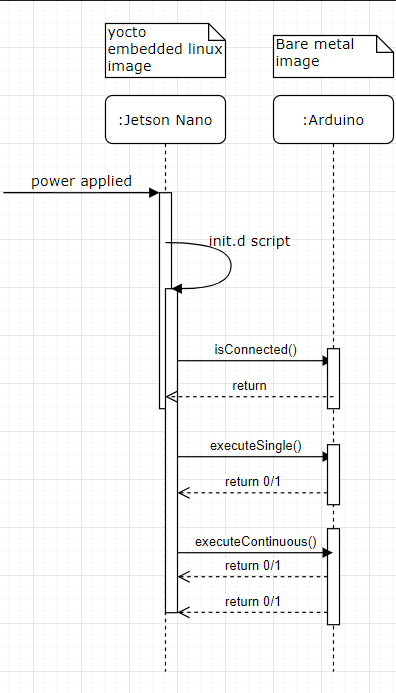

The UML sequence diagram below describes the communication flow through our application.

UML Sequence Diagram

Is Connected

Once the application is ran, it executes an isConnected which sends a byte to the Arduino to see if it is connected. The Arduino is listening for this byte ('a') and responds with acknowledge\r.

One TODO for this part is to validate the response from the Arduino before continuing with the application.

Execute Human Recognition

After the application has verified the Arduino is connected, it can either the facial recognition once or continuously.

Execute Single

If the byte 's' is sent to the Arduino, it will execute one loop of the facial recognition processing. The repsonse the Jetson Nano will get will be either true or false depending on the success of the processing loop.

Execute Continous

If the byte 'c' is sent, the Arduino will begin executing continously and continue to respond with true or false.
